Introduction

This article will demonstrate how to send messages to HipChat from a Cerb bot.

When you create a custom integration in HipChat you’re given a unique URL with a built-in authentication token. This allows you to send messages to the specified room from a third-party application using a simple HTTP POST¹.

Rather than using this URL directly in various actions within a Cerb bot, we’re going to create a reusable behavior for sending a notification to HipChat that several other bots can use. This protects the pre-authenticated HipChat URL, and it also improves maintainability since you make changes to the behavior in a single place.

• Add an integration in HipChat
• Build the reusable bot behavior in Cerb
• Use the new behavior from any Cerb bot
• References

Add an integration in HipChat

First, we need to create a new custom integration in HipChat to generate the URL we’ll use to send messages.

Log in to HipChat from a web browser.

Click Integrations in the top navigation.

Select a room and click Build your own integration:

Name it Cerb and click the Create button:

You should see your POST URL:

With the above URL we can use the HipChat room notification API² to send messages from Cerb. For instance, here’s a new message in JSON³ format:

{
  "color": "random",
  "message": "This is a new message.",
  "notify": false,
  "message_format": "text"
}

Build the reusable bot behavior in Cerb

Now we’ll create the behavior in Cerb that POSTs to this URL when a bot wants to send a message to the HipChat room.

Log in to Cerb as an administrator.

From Search » Bots, click (+) in the top right of the worklist to add a new bot.

Enter the following:

You can find the HipChat logo on their Twitter profile⁴.

Optionally, you can also restrict Events to Custom bot behavior and Actions to Execute an HTTP request.

Once finished, click the Save Changes button.

Open the card for HipChat Bot in the worklist. You can click the link in the yellow notification that appeared above the worklist when you created the record.

Click the Behaviors button near the button of the popup.

Click the (+) icon in the behaviors worklist to add a new behavior.

Select Import at the top and paste the following behavior:

{
  "behavior":{
    "title":"Send a notification to HipChat",
    "is_disabled":false,
    "is_private":false,
    "event":{
      "key":"event.macro.bot",
      "label":"Custom bot behavior"
    },
    "variables":{
      "var_message":{
        "key":"var_message",
        "label":"Message",
        "type":"S",
        "is_private":"0",
        "params":{
          "widget":"multiple"
        }
      },
      "var_color":{
        "key":"var_color",
        "label":"Color",
        "type":"D",
        "is_private":"0",
        "params":{
          "options":"random\r\ngray\r\ngreen\r\npurple\r\nred\r\nyellow"
        }
      }
    },
    "configure": [
      {
        "label": "What is your HipChat POST URL?",
        "path": "behavior.nodes[0].params.actions[0].http_url",
        "type": "S"
      }
    ],
    "nodes":[
      {
        "type":"action",
        "title":"Send notification to HipChat",
        "params":{
          "actions":[
            {
              "action":"core.va.action.http_request",
              "http_verb":"post",
              "http_url":"",
              "http_headers":"Content-Type: application\/json",
              "http_body":"{% set json = {} %}\r\n{% set json = dict_set(json, 'color', var_color) %}\r\n{% set json = dict_set(json, 'message', var_message) %}\r\n{% set json = dict_set(json, 'notify', true) %}\r\n{% set json = dict_set(json, 'message_format', 'html') %}\r\n{{json|json_encode|json_pretty}}",
              "run_in_simulator":"1",
              "response_placeholder":"_http_response"
            }
          ]
        }
      }
    ]
  }
}

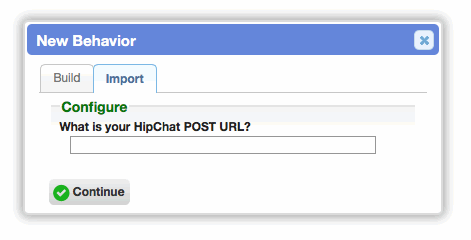

Cerb will prompt you for the URL that HipChat generated for you in the first step above. Paste it into the text box and click the Continue button:

Open the card for the newly created behavior.

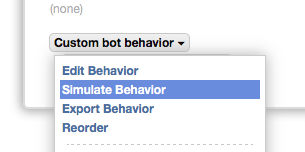

Now let’s test the behavior to make sure it’s working properly. Click on the Custom bot behavior node and select Simulate Behavior from the menu:

In the simulator, type a test message and click the Simulate button:

You should see the new message in HipChat:

Use the new behavior from any Cerb bot

In any bot behavior, you can now add a new Run behavior action and call this HipChat behavior:

Your message can include any placeholders from that event. For example, if you want to notify a room about new tickets, you can include the mask, subject, and the profile URL.
