DMARC Reports
Introduction
This workflow automatically parses DMARC report attachments in email.
Installation
This workflow is built into Cerb 11.0+. It will automatically update.
You can enable it from Search » Workflows » (+) » DMARC Reports.
Usage
Testing the DMARC report interaction
Navigate to Search » Attachments.

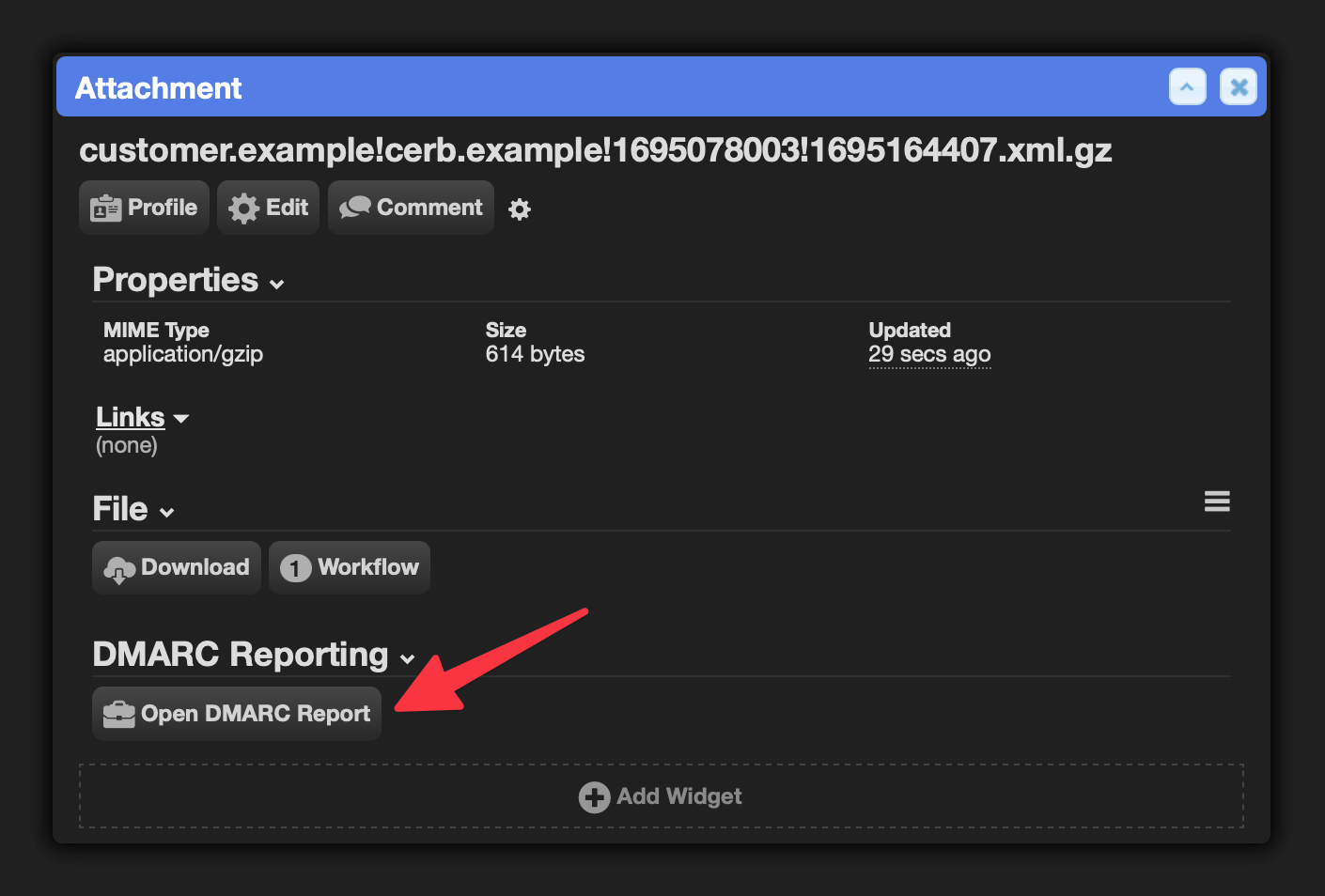

Open the card for the file: customer.example!cerb.example!1695078003!1695164407.xml.gz

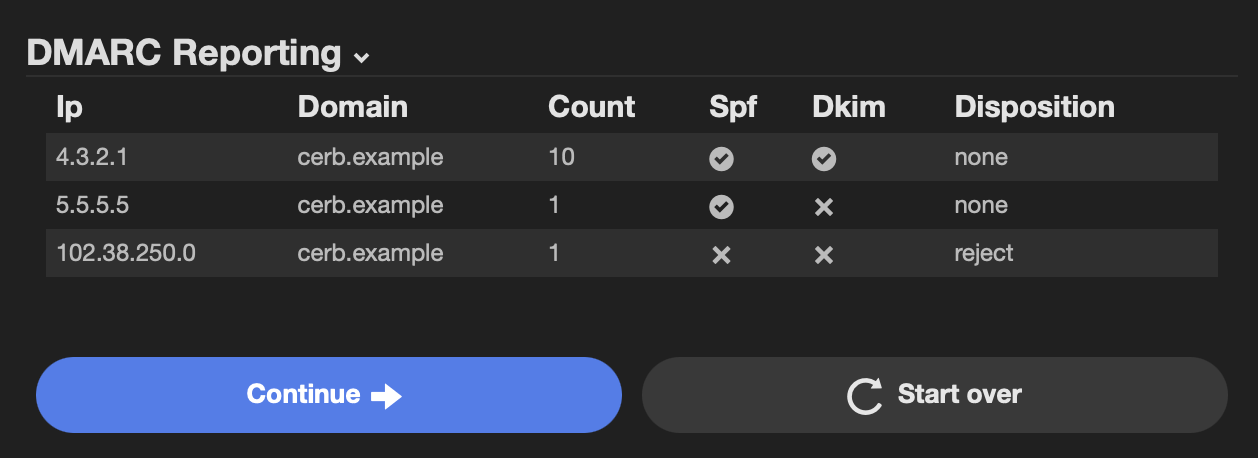

Click the Open DMARC Report button at the bottom of the popup.
The DMARC Reporting card widget will only appear on these attachments.
Configure delivery of DMARC reports to Cerb
In the DNS of all sender domains, you should have a DMARC record configured like:
TXT _dmarc.cerb.example
v=DMARC1; p=reject; sp=reject; rf=afrf; adkim=s; aspf=s; pct=100; ri=86400;fo=1;
Add the following options to enable DMARC delivery reports. Replace dmarc-reports@cerb.example with an email address that delivers into Cerb.
rua=mailto:dmarc-reports@cerb.example; ruf=mailto:dmarc-reports@cerb.example;
Reference
You can build your own DMARC reports workflow using this template as a reference.
Change occurrences of cerb.email.dmarc_reports to your own workflow identifier. Use a prefix based on a domain you own (e.g. com.example.workflow).
workflow:
name: cerb.email.dmarc_reports
version: 2024-10-14T00:00:00Z
description: Parse DMARC report attachments in email
website: https://cerb.ai/workflows/cerb.email.dmarc_reports/
requirements:
cerb_version: >=11.0 <11.1
cerb_plugins: cerberusweb.core
records:
automation/parse:
fields:
name: cerb.email.dmarcReports.parse
extension_id: cerb.trigger.automation.function
description: Parse DMARC report attachments
script@raw:
inputs:
record/file:
record_type: attachment
required@bool: yes
start:
decision/format:
# .xml.gz
outcome/gzipXml:
if@bool: {{inputs.file.name ends with '.xml.gz'}}
then:
file.read:
inputs:
uri: cerb:attachment:{{inputs.file.id}}
filters:
gzip.decompress:
output: file_contents
# .zip
outcome/zip:
then:
# Look inside the ZIP for the first XML file
data.query/zip:
inputs:
query@text:
type:attachment.manifest
id:{{inputs.file.id}}
filter:*.xml
limit:1
format:dictionaries
output: results
on_success:
outcome/notFound:
if@bool: {{1 != results.data.cursor.num_files}}
then:
return:
# Extract the XML file from the ZIP
file.read:
inputs:
uri: cerb:attachment:{{inputs.file.id}}
extract: {{results.data.files[0].name}}
output: file_contents
on_success:
outcome/notXml:
# Must be XML
if@bool:
{{
not file_contents.bytes
or 'text/xml' != file_contents.mime_type
}}
then:
return:
set/json:
file_contents@json: {{xml_decode(file_contents.bytes)|json_encode}}
outcome/notJson:
# Must be JSON
if@bool: {{not file_contents}}
then:
return:
# If there's only one row, make a list for consistency
outcome/oneRow:
if@bool: {{file_contents.record.row is not empty}}
then:
var.set:
inputs:
key: file_contents:record
value:
0@key: file_contents:record
return:
report@key: file_contents
policy_kata@raw:
commands:
data.query:
deny/type@bool: {{query.type != 'attachment.manifest'}}
allow@bool: yes
file.read:
deny/uri@bool: {{inputs.uri is not prefixed ('cerb:attachment:')}}
allow@bool: yes
automation/interaction:
fields:
name: cerb.email.dmarcReports.interaction
extension_id: cerb.trigger.interaction.worker
description: Interaction for quick review of DMARC reports
script@raw:
inputs:
record/file:
required@bool: yes
record_type: attachment
start:
function/dmarc:
uri: cerb:automation:cerb.email.dmarcReports.parse
output: results
inputs:
file: {{inputs.file.id}}
on_success:
await:
form:
title: DMARC results
elements:
sheet/prompt_sheet:
data@key: results:report:record
schema:
layout:
columns:
text/ip:
params:
value_template@raw: {{row.source_ip}}
#interaction/ip:
# params:
# uri: cerb:automation:cerb.interaction.locationByIP
# text_template@raw: {{row.source_ip}}
# inputs:
# ip@raw: {{row.source_ip}}
text/domain:
params:
value_template@raw: {{identifiers.header_from}}
text/count:
params:
value_template@raw: {{row.count}}
icon/spf:
params:
image_template@raw: {{'pass' == row.policy_evaluated.spf ? 'circle-ok' : 'remove-2'}}
icon/dkim:
params:
image_template@raw: {{'pass' == row.policy_evaluated.dkim ? 'circle-ok' : 'remove-2'}}
text/disposition:
params:
value_template@raw: {{row.policy_evaluated.disposition}}
policy_kata@raw:
commands:
function:
deny/uri@bool: {{uri != 'cerb:automation:cerb.email.dmarcReports.parse'}}
allow@bool: yes
card_widget/attachment_card:
fields:
name: DMARC Reporting
extension_id: cerb.card.widget.form_interaction
record_type: attachment
pos: 100
width_units: 2
zone: content
extension_params:
is_popup: 0
interactions_kata@raw:
interaction/dmarcReport:
label: Open DMARC Report
uri: cerb:automation:cerb.email.dmarcReports.interaction
icon: briefcase
hidden@bool:
{{
not (
record_mime_type in ['application/zip','application/gzip','application/octet-stream']
and record_name is pattern ('*!*!*.zip','*!*!*.xml.gz')
)
}}
inputs:
file: {{record_id}}
options_kata@raw:
hidden@bool:
{{
not (
record_mime_type in ['application/zip','application/gzip','application/octet-stream']
and record_name is pattern ('*!*!*.zip','*!*!*.xml.gz')
)
}}
attachment/dmarc_example:
fields:
name: customer.example!cerb.example!1695078003!1695164407.xml.gz
mime_type: application/gzip
content: data:application/zip;base64,H4sICI+NC2UAA2N1c3RvbWVyLmV4YW1wbGUhY2VyYi5leGFtcGxlITE2OTUwNzgwMDMhMTY5NTE2NDQwNy54bWwA7VbbjtsgFHzfr4jyXl9y21Ri2T71C9pni8BxQtcGBDhN/75gwPYm2TbqbqWqWuUhZs6YOWcYO0GPp7aZHUEbLsXDvMyK+QwElYyL/cP865fPH7bz2SO+QzUA2xH6hO9mMxT52NFRnha+oEFJbasWLGHEEo85VOp9JUgLmHbGyhZ0BifSqgZQPpQCE1rCG8xaoumnS3KoRubJalJRKSyhtuKili/fdkkNe8RuOcOk3C3okq1gXW+u7DASw41uNqg0EfvYt4N2sOfOkM3HdXG/LYolygOS6iBYXy03q1Vx75oSabP8+W6D2tREpGTD6Y9KdbuGmwMMjUhnicAU9G7sNoKBQdgTb7FBebiIoFF1j/nvACms4RtQi3IVETNCJmGKWlwW7tD9Rd/stcacsVTq1KOW3wcXjOw0hYorvMqW2SIr3d4DlEhUdsLLoDxcJTxKwZE0nbOMpYL3gRslDbc+h0IKb8IEmfC8B4oYN/toR5y2joXBk8l4Z5rujNJQiDMQltfcPQXDbQcgDHRVa9menc20MkbjCI1UcI3/vBbFLyQR6eyh0mC6xo5dnE3426wEH6BxRy51z3NmpOXICDLRrLgY/JpqoomTt+tTNy1u/bhOvV/cKD1mOT+3w5NTIm8J5zrrP78I59/KZu3ecO/ZfG02g4v/ZzbLYpEtt9liXfgf37cOaHrj/0lEQ+E9ov96RK9L3xRRlA//A38Cx2teijoKAAA=
attach@list:
workflow:{{workflow_id}}
