Introduction

This workflow integrates Cerb with GitLab for searching and linking issues to tickets.

Installation

Create a GitLab connected account

Create a GitLab connected account if you haven’t already.

Import the workflow

Navigate to Search » Workflows » (+) » Empty.

Paste the following KATA into the large text box:

workflow:
  name: cerb.integrations.gitlab.issues
  version: 2024-11-05T01:55:03Z
  description: Search and link GitLab issues to tickets
  website: https://cerb.ai/workflows/cerb.integrations.gitlab.issues/
  requirements:
    cerb_version: >=11.0 <11.1
    cerb_plugins: cerberusweb.core
  config:
    chooser/gitlab_account_id:
      label: GitLab Account:
      multiple@bool: no
      record_type: connected_account
      record_query: service:(name:gitlab)
    text/gitlab_base_url:
      label: GitLab Base URL:
      multiple@bool: no
      default: https://gitlab.com/
    text/gitlab_project_names:
      label: GitLab Project Names: (one per line)
      multiple@bool: yes
      default: example/project-name
    chooser/ticket_profile_tab_id:
      label: Ticket Profile Tab
      record_type: profile_tab
      multiple@bool: no
      record_query: record:cerberusweb.contexts.ticket name:Overview
records:
  custom_record/gitlab_issue:
    fields:
      name: GitLab Issue
      name_plural: GitLab Issues
      uri: gitlab_issue
      params:
        owners:
          contexts@list:
            cerberusweb.contexts.app
  custom_field/gitlab_issue_project_id:
    fields:
      name: Project Name
      context: gitlab_issue
      uri: project_name
      type: S
      pos@int: 3
      params:
        context@text:
  custom_field/gitlab_issue_remote_id:
    fields:
      name: Remote ID
      context: gitlab_issue
      uri: remote_id
      type: N
      pos@int: 1
  custom_field/gitlab_issue_remote_iid:
    fields:
      name: Remote IID
      context: gitlab_issue
      uri: remote_iid
      type: N
      pos@int: 2
  custom_field/gitlab_issue_status:
    fields:
      name: State
      context: gitlab_issue
      uri: state
      type: S
      pos@int: 4
  custom_field/gitlab_issue_web_url:
    fields:
      name: Web URL
      context: gitlab_issue
      uri: web_url
      type: U
      pos@int: 5
  automation/automation_getProjectIssues:
    fields:
      name: cerb.integrations.gitlab.issues.getProjectIssues
      extension_id: cerb.trigger.automation.function
      description: Get issues from a project
      script@raw:
        inputs:
          text/project_name:
            required@bool: yes
          text/query:

        start:
          set:
            config@json: {{cerb_workflow_config('cerb.integrations.gitlab.issues')|json_encode}}
            params:
              search@optional: {{inputs.query}}
          http.request/getProjectIssues:
            output: http_response
            inputs:
              method: GET
              url: https://gitlab.com/api/v4/projects/{{inputs.project_name|url_encode}}/issues?{{params|url_encode}}
              authentication: cerb:connected_account:{{config.gitlab_account_id}}
            on_success:
              decision/status:
                outcome/200:
                  if@bool: {{200 == http_response.status_code}}
                  then:
                    set:
                      http_response@json: {{http_response.body}}
                      issues@json: {{array_combine(http_response|column('id'), http_response)|json_encode}}
                    return:
                      issues@key: issues
                outcome:
                  then:
                    return:
                      issues@list:
      policy_kata@raw:
        commands:
          http.request:
            allow@bool: yes
  automation/automation_linkIssuesInteraction:
    fields:
      name: cerb.integrations.gitlab.issues.linkInteraction
      extension_id: cerb.trigger.interaction.worker
      description: Search GitLab issues from a ticket profile
      script@raw:
        inputs:
          record/ticket:
            required@bool: no
            record_type: ticket

        start:
          set/init:
            config@json: {{cerb_workflow_config('cerb.integrations.gitlab.issues')|json_encode}}
            project_names@json: {{config.gitlab_project_names|split_crlf|map((v) => {name:v})|json_encode}}

          # Choose project and enter search query
          await/search:
            form:
              title: Search GitLab Issues
              elements:
                sheet/prompt_project_name:
                  label: Project:
                  required@bool: yes
                  data@key: project_names
                  default: {{project_names|first.name}}
                  limit: 25
                  schema:
                    layout:
                      style: grid
                      headings@bool: no
                      paging@bool: yes
                      filtering@bool: no
                      title_column: _label
                    columns:
                      selection/name:
                        params:
                          mode: single
                          label_key: name
                text/prompt_query_text:
                  label: Search text:
                  type: freeform

          # Search issues via API
          function/results:
            uri: cerb:automation:cerb.integrations.gitlab.issues.getProjectIssues
            output: search_results
            inputs:
              project_name: {{prompt_project_name}}
              query@optional: {{prompt_query_text}}

          # Render search results in a sheet
          await/results:
            form:
              elements:
                sheet/prompt_issues:
                  data@key: search_results:issues
                  limit: 15
                  schema:
                    layout:
                      style: table
                      headings@bool: yes
                      paging@bool: no
                      title_column: title
                    columns:
                      selection/id:
                        params:
                          mode: multiple
                      text/title:
                        params:
                          bold@bool: yes
                      text/state:
                      text/author:
                        params:
                          value_template@raw: {{author.username}}
                      date/updated_at:
                        params:
                          value_template@raw: {{updated_at|date('U')}}
                      link/_link:
                        params:
                          href_key: web_url
                          href_new_tab@bool: yes
                          text: view at GitLab
                submit:
                  buttons:
                    continue/link:
                      label: Link to ticket
                      icon: link
                      icon_at: start
                      value: link
                    reset:
                      label: Start over
                      icon: refresh
                      icon_at: start
                      style: secondary

          # If we have selections, create records and link them to this ticket
          repeat/issues:
            each@csv: {{prompt_issues|join(',')}}
            as: issue_id
            do:
              set:
                issue@json: {{search_results.issues[issue_id]|json_encode}}
              record.upsert/issue:
                output: updated_issue
                inputs:
                  record_type: gitlab_issue
                  record_query@text: projectName:${project_name} remoteId:${remote_id} limit:1
                  record_query_params:
                    project_name: {{prompt_project_name}}
                    remote_id@int: {{issue_id}}
                  fields:
                    name: {{issue.title}}
                    project_name: {{prompt_project_name}}
                    remote_id: {{issue.id}}
                    remote_iid: {{issue.iid}}
                    state: {{issue.state}}
                    owner__context: app
                    owner_id: 0
                    links@list:
                      ticket:{{inputs.ticket.id}}
                on_error:

          return:
            issue_ids@key: prompt_issues
      policy_kata@raw:
        commands:
          function:
            deny/uri@bool: {{uri != 'cerb:automation:cerb.integrations.gitlab.issues.getProjectIssues'}}
            allow@bool: yes
          record.upsert:
            deny/type@bool: {{inputs.record_type is not record type ('gitlab_issue')}}
            allow@bool: yes
  automation/automation_unlinkIssuesInteraction:
    fields:
      name: cerb.integrations.gitlab.issues.unlink
      extension_id: cerb.trigger.interaction.worker
      description@text:
      script@raw:
        inputs:
          record/ticket:
            required@bool: yes
            record_type: ticket
          array/issues:
            required@bool: yes

        start:
          record.update:
            inputs:
              record_type: ticket
              record_id: {{inputs.ticket.id}}
              fields:
                links@list:
                  {% for id in inputs.issues %}
                  -gitlab_issue:{{id}}
                  {% endfor %}
      policy_kata@raw:
        commands:
          record.update:
            deny/type@bool: {{inputs.record_type is not record type ('ticket')}}
            allow@bool: yes
  profile_widget/ticket_profile_issues:
    fields:
      name: Linked GitLab Issues
      profile_tab_id: {{config.ticket_profile_tab_id}}
      extension_id: cerb.profile.tab.widget.sheet
      pos@int: 4
      width_units@int: 4
      zone: sidebar
      extension_params:
        data_query@raw:
          type:worklist.records
          of:gitlab_issue
          expand: [customfields]
          query:(
            links.ticket:(id:{{record_id}})
            limit:10
            sort:[-updated]
          )
          format:dictionaries
        cache_secs@text:
        placeholder_simulator_kata: record_id: 3
        sheet_kata@text:
          layout:
            style: table
            headings@bool: no
            paging@bool: yes
            title_column: _label

          columns:
            selection/id:
              params:
                mode: multiple
            card/_label:
              label: Issue
              params:
                bold@bool: yes
            text/project_name:
            text/state:
        toolbar_kata@raw:
          interaction/link:
            label: Link
            uri: cerb:automation:cerb.integrations.gitlab.issues.linkInteraction
            icon: search
            hidden@bool:
              {{record__context is not record type ('ticket')}}
            inputs:
              ticket: {{record_id}}
            after:
              refresh_toolbar@bool: no
              refresh_widgets@list:
                Linked GitLab Issues
                Ticket
          interaction/unlink:
            label: Unlink
            uri: cerb:automation:cerb.integrations.gitlab.issues.unlink
            icon: circle-remove
            hidden@bool:
              {{
                record__context is not record type ('ticket')
                or not row_selections
              }}
            inputs:
              ticket: {{record_id}}
              issues@key: row_selections
            after:
              refresh_toolbar@bool: no
              refresh_widgets@list:
                Linked GitLab Issues
                Ticket

Click the Continue button.

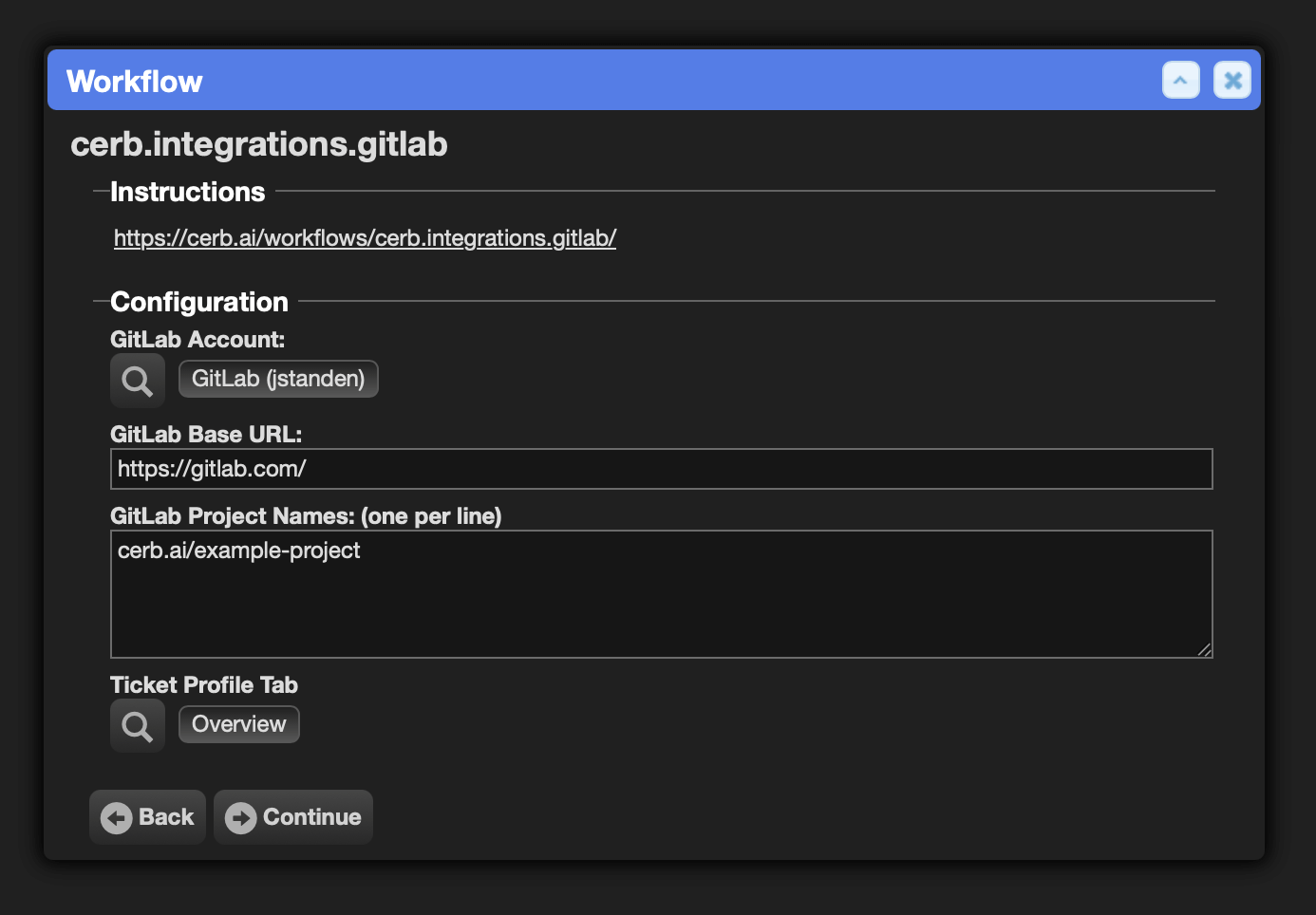

Configure the workflow

Click the Continue button twice.

Usage

Navigate to any ticket profile page.

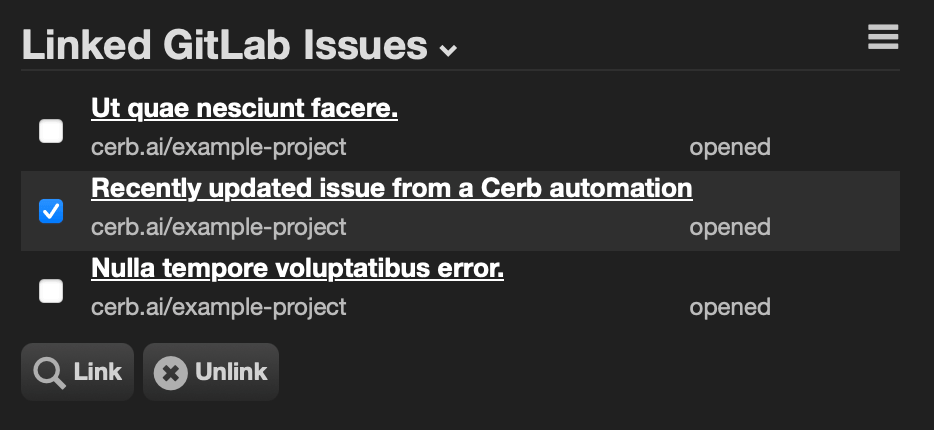

Drag the Linked GitLab Issues profile widget to your desired location.

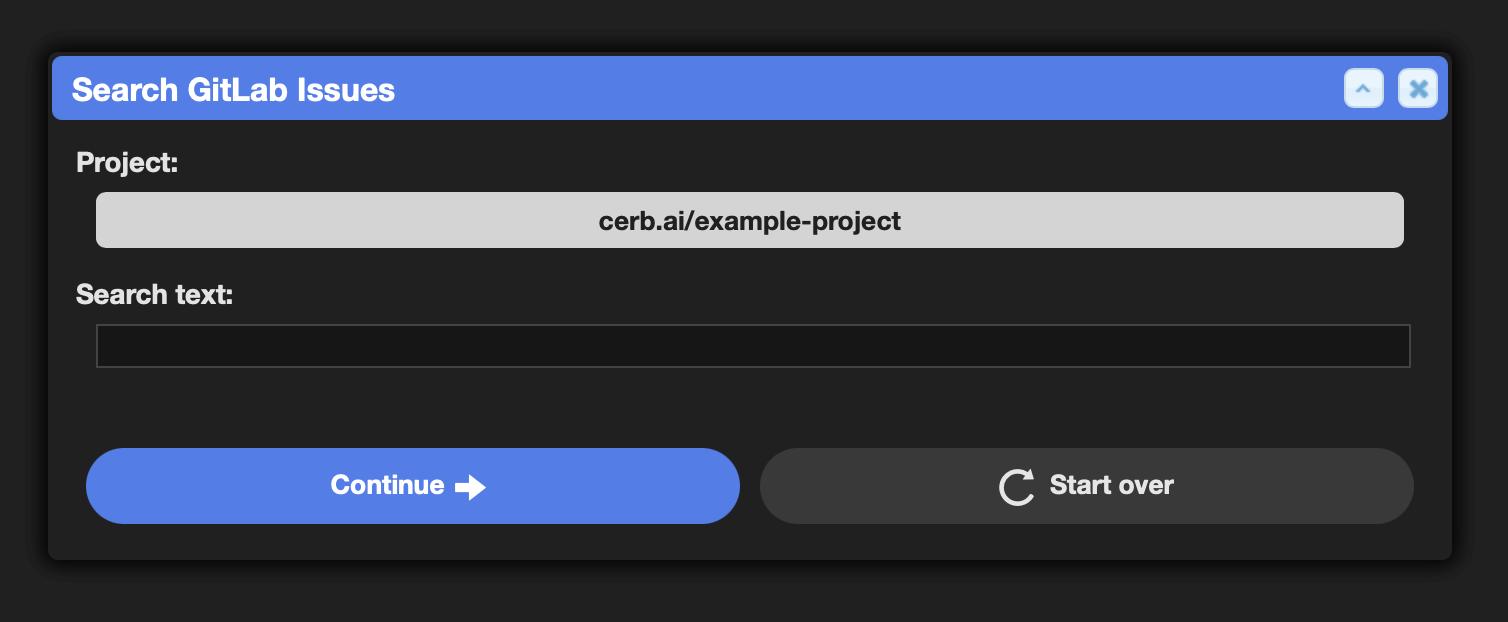

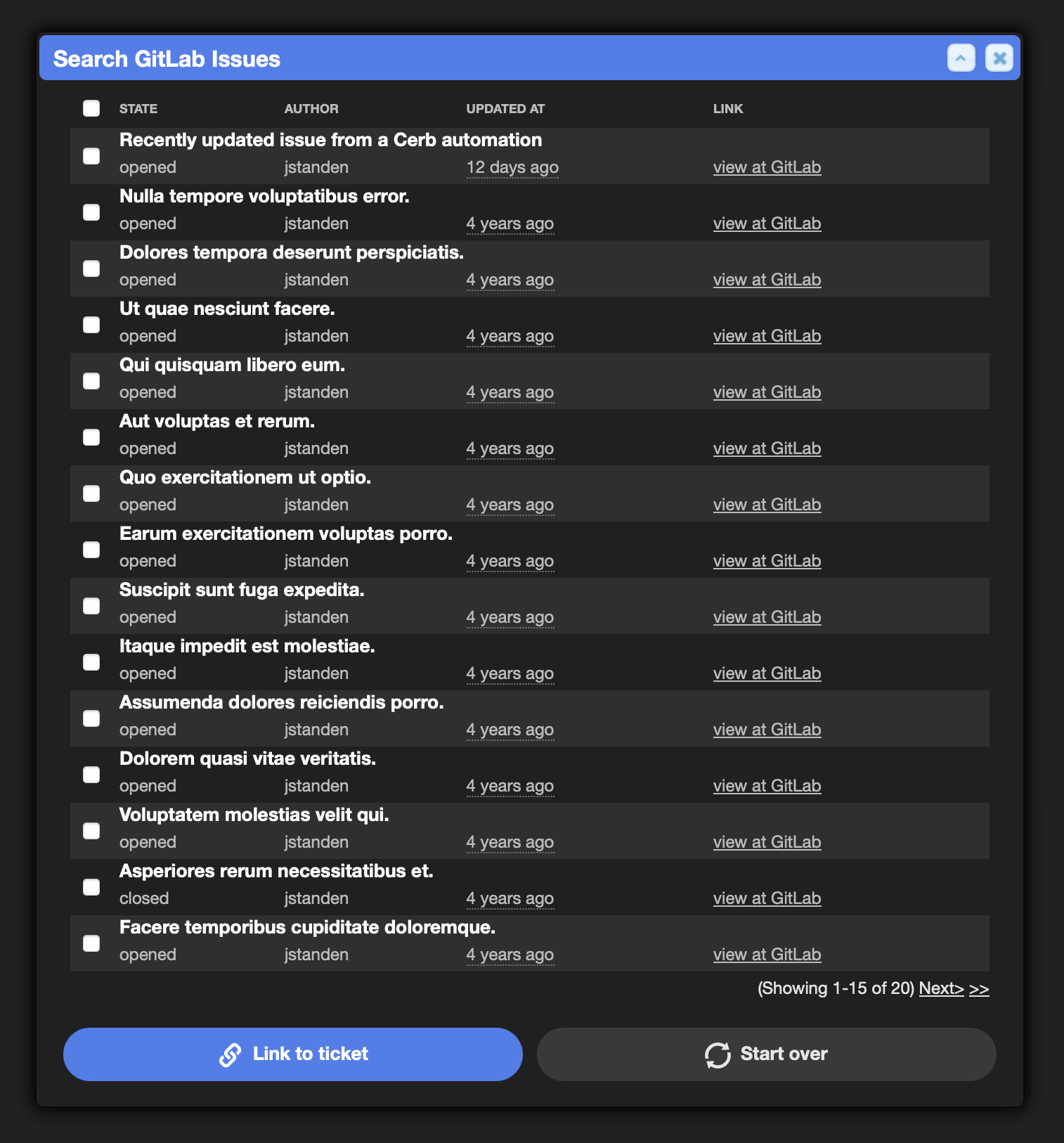

Click on the Link button in the profile widget to search issues and link them to the current ticket.

Once linked, select on one or more issues and click the Unlink button to unlink them from the current ticket.
