In website interactions forms, a text element displays a text input field with various validation options.

Formats: date, decimal, bool, email, ip, geopoint, number, record type, timestamp, uri, url

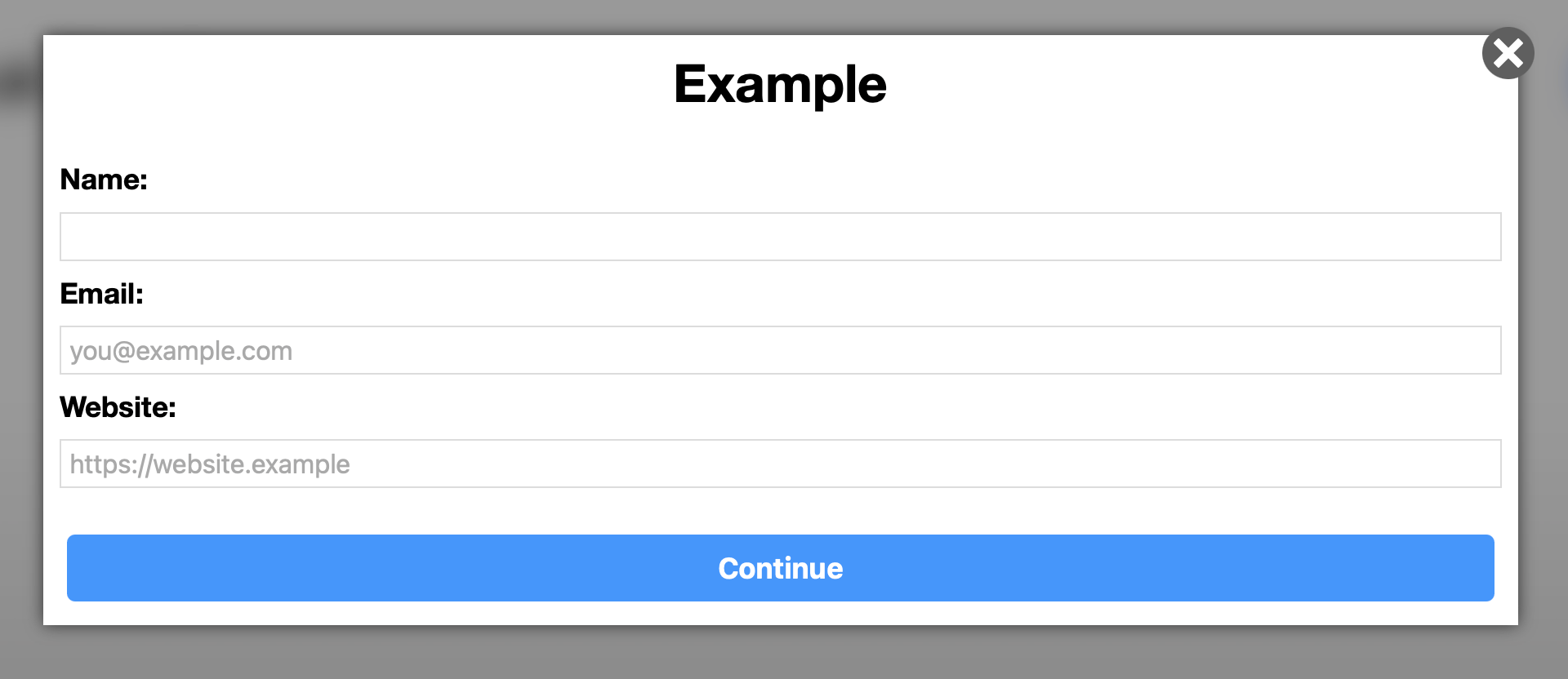

start:
  await:
    form:
      title: Example
      elements:
        text/prompt_name:
          label: Name:
          required@bool: yes
          type: freeform
        text/prompt_email:
          label: Email:
          required@bool: yes
          type: email
          placeholder: you@example.com
        text/prompt_website:
          label: Website:
          required@bool: yes
          type: url
          placeholder: https://website.example


Syntax

label:

The optional label to display above the form element.

required@bool:

If user input is required on this element use a value of yes. Otherwise, omit.

type:

Default: freeform

Type Examples
bool true, false
date tomorrow 8am, next Friday, 31 Dec 2025 noon
decimal 3.1415
email mailbox@host
freeform An arbitrary string of text
geopoint 52.5246, 13.4033 (latitude, longitude)
ip 1.2.3.4, 1234:5678:90ab:cdef:1234:5678:90ab:cdef
ipv4 1.2.3.4
ipv6 1234:5678:90ab:cdef:1234:5678:90ab:cdef
number 12345
record_type task, ticket, worker
timestamp 1606955026
uri some-unique-identifier (letters, numbers, dots, dashes)
url https://example.com/

placeholder:

An optional tooltip displayed in the text box when there is no input.

default:

An optional default value.

max_length:

An optional maximum length for the text input.

Type Default Max Length
freeform 1,024
url 2,048
(everything else) 255

validation:

An optional custom validation script. Any output is considered to be an error.

You can use if...elseif to check multiple conditions.



text/prompt_name:
  label: Name:
  required@bool: yes
  type: freeform
  validation@raw:
    {% if prompt_name is empty %}
    A name is required.
    {% elseif prompt_name|length < 8 %}
    A name must be 8 or more characters.
    {% elseif prompt_name|length > 32 %}
    A name must be less than 32 characters.
    {% endif %}
