interaction.website

interaction.website automations are interactions with visitors on third-party websites that use continuations to pause and resume a multi-step workflow.

On websites, this can be used for surveys, sign-up forms, contact forms, troubleshooters, customer service bots, and much more.

Website interactions are usually started on any website when a page element is interacted with – a link, button, image, etc.

A website interaction can also be started with a shared link.

At its conclusion, an interaction returns a dictionary and exit state to the caller, which is then responsible for acting on the results.

Inputs

An interaction automation dictionary starts with the following input values:

Key Type Notes
interaction string The name of the interaction.
interaction_params dictionary Arbitrary interaction parameters.
inputs dictionary Custom input values from the caller.
client_browser_name string The client browser name (e.g. Safari).
client_browser_platform string The client browser platform (e.g. Macintosh).
client_browser_version string The client browser version.
client_ip string The client IP address.
portal record The community portal.

Outputs

await:form:

When suspending in the await state, the interaction displays a web form with the desired elements. The form may prompt for user input, validate it, and set dictionary keys (placeholders) with the responses.


await:
  form:
    title: Your form title
    elements:
      # ...

title:

The title of this form to be displayed in the interaction popup. This is usually a summary of the current step.

elements:

Form elements are defined with a key in the format type/name:.

The name must be unique within the form. When an element prompts for user input, a placeholder with the same name will be created with their response. For instance, text/prompt_name: will create a placeholder of {{prompt_name}} with the value of that text element.

A form can be created with any combination of the following element types:

Element
say: Block of text or Markdown
sheet: Sheet with row selection
submit: Continue to next step
text: Text input with data types
textarea: Multiple lines of text

When the interaction suspends in the await state, a submit: element is automatically appended to the form if one doesn’t already exist.



start:
  await/who:
    form:
      title: Introduction
      elements:
        text/prompt_name:
          label: What is your name?
          required@bool: yes

  await/hello:
    form:
      title: Hello!
      elements:
        say/hello:
          content: Hello, {{prompt_name}}!

  return:
    user:
      name@key: prompt_name


await:interaction:

When suspending in the await:interaction: state, the interaction temporarily hands control to another delegate interaction. The interaction resumes at the current point when the delegate exits.

Delegates can be nested to any depth. For instance, a reusable delegate could handle email or SMS validation, and be shared by many other interactions.

This makes interactions much more modular and reusable.

uri:

The uri: parameter specifies the delegate automation. This must use the interaction.website trigger.

output:

An output: key specifies the placeholder that should receive the results from the delegate.



start:
  while:
    if@bool: yes
    do:

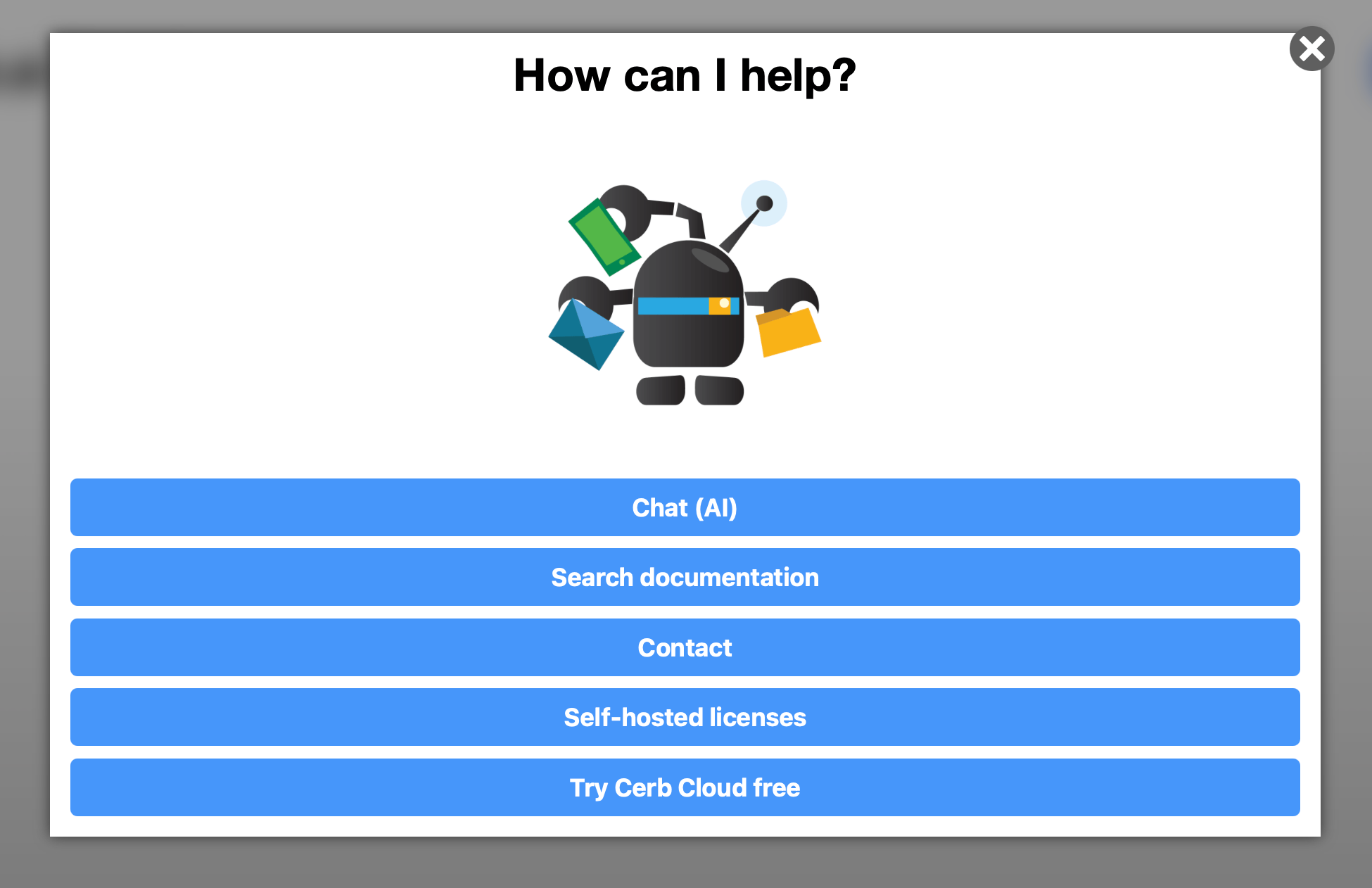

      await/menu:
        form:
          title: Menu
          elements:
            say:
              message: How can we help?
            sheet/prompt_menu:
              required@bool: yes
              data:
                0:
                  key: map
                  label: Map
                1:
                  key: echo
                  label: Echo
              schema:
                layout:
                  style: buttons
                  headings@bool: no
                  paging@bool: no
                  title_column: label
                columns:
                  selection/key:
                    params:
                      mode: single
                  text/label:
            submit:
              continue@bool: no
              reset@bool: no
      await/do:
        interaction:
          output: results
          uri@text:
            cerb:automation:{{{
                'map': 'wgm.interaction.locationByIP',
                'echo': 'wgm.interaction.echo',
              }[prompt_menu]}}


return:

When the interaction concludes in the return state, it returns any number of key/value pairs to the caller. Keys may be nested to return dictionaries.

Installation on websites

See: 10.0: NPS surveys with website interactions
