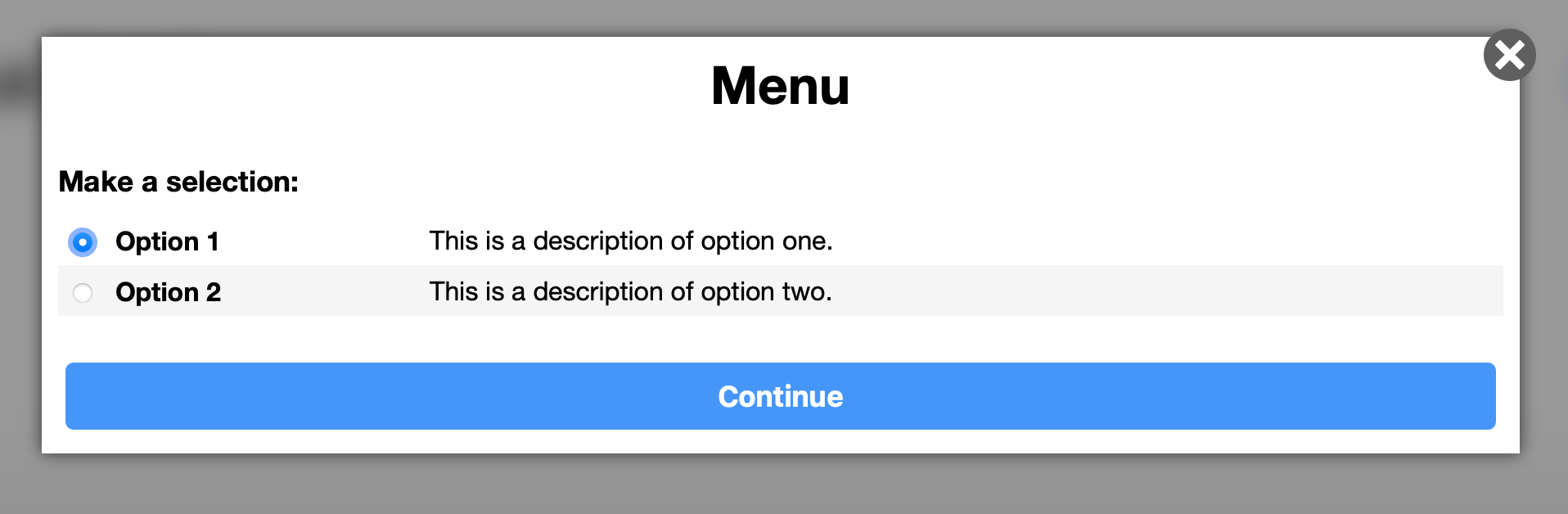

In website interactions forms, a sheet element displays a sheet schema using static or dynamic data.

Selection prompt can be set to ‘single’ or ‘multiple’.



start:
  await:
    form:
      elements:
        title: Menu
        sheet/prompt_choice:
          label: Make a selection:
          required@bool: yes
          data:
            0:
              key: option1
              name: Option 1
              description: This is a description of option one.
            1:
              key: option2
              name: Option 2
              description: This is a description of option two.
          limit: 5
          default: option1
          schema:
            layout:
              headings@bool: no
              paging@bool: no
              #filtering@bool: yes
              #title_column: key
            columns:
              selection/key:
                params:
                  mode: single
              text/name:
                params:
                  bold@bool: yes
              text/description:

Syntax

label:

The optional label to display above the form element.

required@bool:

If user input is required on this element use a value of yes. Otherwise, omit.

data:

A sheet element can display an array of dictionaries as a dataset.

Alternatively, a ui.sheet.data automation can fetch a dynamic dataset.



start:
  await:
    form:
      elements:
        sheet/prompt_workers:
          label: Workers:
          required@bool: yes
          data:
            automation:
              uri: cerb:automation:cerb.data.records
              inputs:
                record_type: worker
                query_required@text:
                  isDisabled:n
          limit: 5
          schema:
            layout:
              headings@bool: no
              paging@bool: no
              filtering@bool: yes
            columns:
              selection/id:
                params:
                  mode: multiple
              card/_label:
                params:
                  bold@bool: yes
                  image@bool: yes

Synthesized data

You can also specify a list of keys in data: without properties. These will be available as the key property.



start:
  await:
    form:
      elements:
        sheet/prompt_rating:
          label: Rating:
          required@bool: yes
          data:
            1:
            2:
            3:
            4:
            5:
          schema:
            layout:
              headings@bool: no
              paging@bool: no
            columns:
              text/key:

limit:

The number of dataset items to display per page. Default: 10

page:

The page of dataset items to display. Default: 0

filter:

The default filtering text, if schema:layout:filtering: is enabled.

default:

The optional selected dataset item(s) by default.

schema:

A sheet schema defining the column types to display for each dataset item.

Selection is managed by a selection: column in the sheet.

The selected values are set on the element placeholder.

The selection:params:mode: may be single or multiple.

validation:

An optional custom validation script. Any output is considered to be an error.

You can use if...elseif to check multiple conditions.



text/prompt_name:
  label: Name:
  required@bool: yes
  type: freeform
  validation@raw:
    {% if prompt_name is empty %}
    A name is required.
    {% elseif prompt_name|length < 8 %}
    A name must be 8 or more characters.
    {% elseif prompt_name|length > 32 %}
    A name must be less than 32 characters.
    {% endif %}
