Cerb (10.0) is a platform upgrade in development as of December 10, 2020. It includes more than 102 new features and improvements from community feedback.
- Important Release Notes
- Project Boards
- Data Queries
To check if you qualify for this release as a free update, view Setup » Configure » License. If your software updates expire on or after August 31, 2020 then you can upgrade without renewing your license. Cerb Cloud subscribers will be upgraded automatically.
Important Release Notes
Cerb 10.0 requires PHP 7.2+ and MySQL 5.6+ (or MariaDB 10.2+).
To upgrade your installation, follow these instructions.
Automations are state machines written in KATA that transform an input dictionary into an output dictionary. The results are used to automate and customize workflows throughout Cerb.
Interactions are interactive automations that use continuations to pause and resume a multi-step workflow.
Resources are shared assets used by automations and widgets.
Cerb can create interactive map visualizations with geospatial data from any source using the standard GeoJSON format.
Sheet row selection
Sheets now include a
selection: column type. This is used by widgets and interactions to use sheets as a prompt for selecting one or more records. The selection key can be any arbitrary value; or even a compound key, or JSON object.
For instance, on a ticket profile, a sheet widget can display the current ‘Participants’, and rows can be selected in combination with a ‘Remove’ interaction.
Over time this will replace the “choosers” feature. Unlike choosers, sheets aren’t limited to displaying records, and can display any data within a dictionary (e.g. hard-coded options, dynamic API results, etc).
Interaction toolbars on sheets
New rows can be added to a sheet from its toolbar. [#959]
Implemented a new sheet
grid. This displays a compact grid rather than a table. For instance, this is used when selecting an icon in some interactions.
Added a new
layout:filtering@bool: option to sheets. When enabled, this shows a search box above the list to filter the current results.
See: Project Boards
Card content from automations
The content of cards is determined by an automation on the
projectBoard.renderCard trigger, which can be provided per-columm, or globally (default for all columns) on the board itself. The automation must return a sheet schema to display.
Project board columns can now display a toolbar of custom interactions (e.g. add task), and may provide one or more automations on the
projectBoard.cardAction trigger (in event handler KATA) to run when a card transitions to a new column.
Default automations are provided for adding tasks, rendering task cards, and rendering completed tasks.
Existing card action behaviors are deprecated and are migrated to the event handler KATA.
Added new data query types:
|platform.extensions||Get a filterable/pageable list of plugin extensions for a given point.|
|record.field||Get a filterable/pageable list of fields on a given record type.|
|record.types||Get a filterable/pageable list of record type.|
|ui.icons||Get a filterable/pageable list of the 600+ built-in icons.|
- In attachment record dictionaries, added a
download_urlplaceholder for the download link.
- On connected account records, added a
urifield. This is a unique identifier (letters, numbers, dashes) used by other functionality (like automations) to refer to a connected account without using internal IDs.

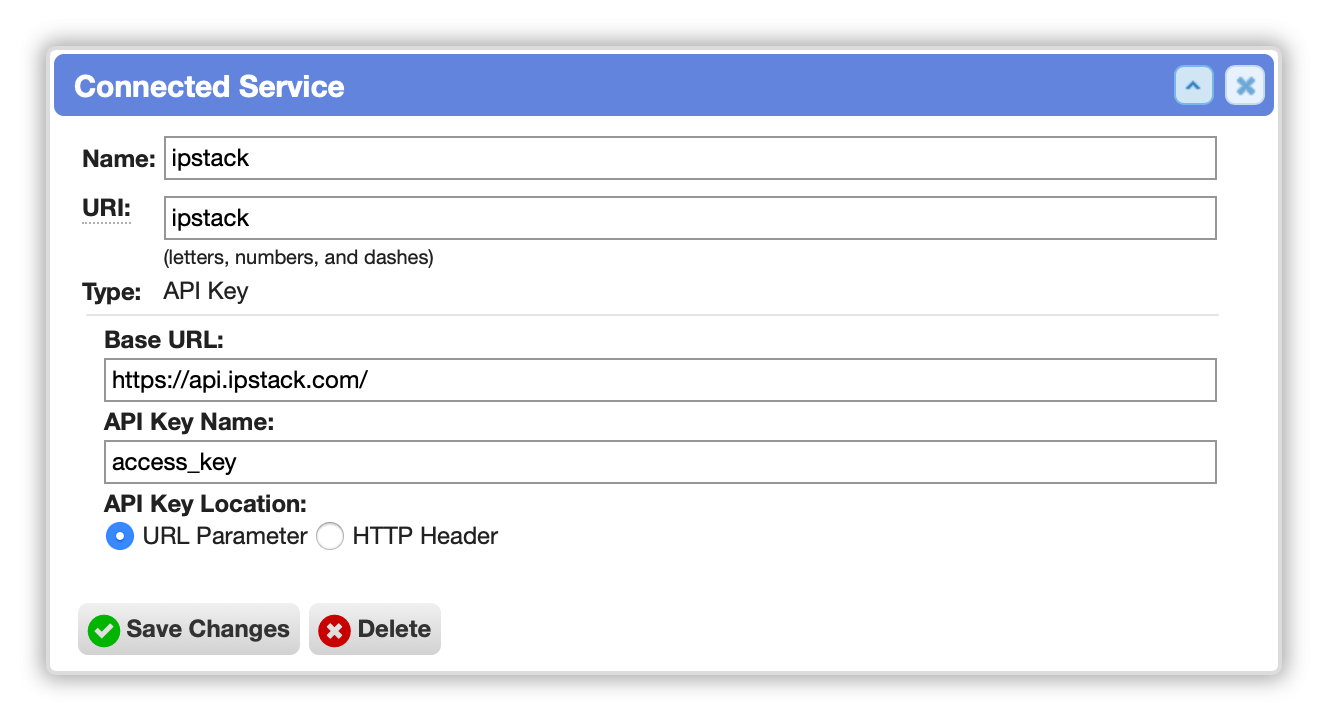

- Added an ‘API Key’ connected service. This securely stores an API key, and authorizes HTTP requests by including the key in a named HTTP header or query argument. A ‘base URL’ option ensures the key is only included on requests to an expected HTTP endpoint.
Custom field records must now define a unique nickname (URI). This is used by functionality like the API, queries, and records API to show human-readable custom field names, where previously they were unhelpfully named using their IDs, like
custom_123. Existing custom fields are automatically assigned URIs by the update.
When expanding record dictionaries, the
customexpansion key continues to return ID-based field names, like
custom_123. The new
customfieldsexpansion key returns URI-based custom field names for human readability.
- Reminder records now use event handler KATA to trigger any number of automations when the alert timer has elapsed. For instance, the reminder worker receive a notification, email, SMS message, etc.
- On ticket profiles, the ‘Participants’ widget now provides shortcut interactions for ‘add’ and ‘remove’.
- Refactored webhook listeners to use automations rather than behaviors. Automations on the
webhook.respondtrigger can be provided in event handler KATA. The input includes details about the HTTP request, and output controls the HTTP response. Webhook listener extensions have been retired (behavior was the only option). Existing webhook behaviors are deprecated and are automatically migrated to the new event handler KATA.
- When installing a new instance of Cerb, a snapshot is now used to initialize the database rather than running all of the patches since 4.0. This is much faster, which improves the user experience, as well as speeding up automated tests, Docker images, etc. [#109]
Deprecated and retired features
Retired message toolbar extensions. These can be better implemented with interactions now.
Conversational bot behaviors on the “global” interaction point (the round floating Cerb icon the lower right) are now moved into a ‘(Deprecated Behaviors)’ sub-menu. These workflows should be migrated to automations.
Retired the ‘Sensors’ plugin. An improved version of this functionality is now possible through custom records and automations. The legacy plugin is available at: https://github.com/cerb-plugins/cerberusweb.datacenter.sensors/
